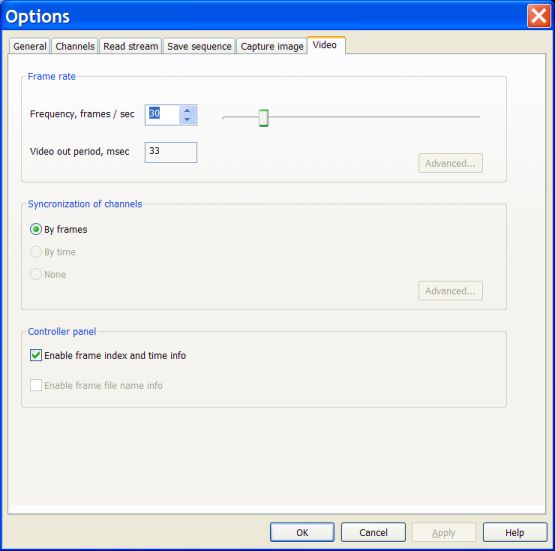

"Video playback" configuration dialog

This dialog allows to specify parameters of Breeze during playing a video.

These parameters are applied when Breeze is in the "Play" mode, and executes "Play" and "Replay" operations.

"Frequency, frames / sec in" combo box

Specify in this field a maximum frame rate (frequency) of video play / replay operations.


This frame rate can further be reduced from the maximum value to zero by setting the "Play" slider in the controller pane of a browser window.

"Video out period, msec" text box

This read only text box shows length in milliseconds ( 0.001 of second) of a video output period (length of time during which one frame is processed).

"Synchronization of channels" group box

Specifies in this group box how concurrently played video streams in the primary and assistant channel have to be synchronized.

"Controller panel" group box

Specify in this group box the parameters of a video info output in the controller panel.

"Enable frame index and time info" check box

Enable / disable real time displaying of a frame index and time info in the controller panel during "Play" and "Replay" operations.

Displaying frame indexes and time info for each frame when video is playing, may slow down total frame rate noticeably, and especially on the computers equipped with a low speed CPU.

It may be useful to disable displaying these parameters in the controller panel during playing a real time video.

On the other hand, knowing indexes of frames and time info for each frame can be very useful during replaying a video from the frame cash buffers. Therefore it may be useful to enable displaying these parameters in the controller panel during replaying a video from the buffers.
